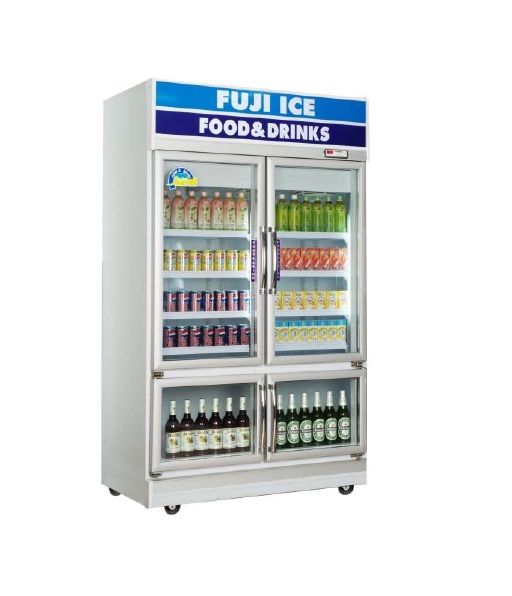

ตู้แช่เย็นมินิมาร์ท 4 ประตู (เก็บน้ำแข็ง) ฟูจิไอซ์

SPECIFICATIONS

Display Chiller 4 Doors

Display Chiller 5 Doors

Display Chiller 6 Doors

EXTERNAL  DIMENTION            (mm)

1100(W) x 650(D) x 2000(H)

1650(W) x 650(D) x 2000(H)

1650(W) x 650(D) x 2000(H)

EXTERNAL MATERIAL

White Colour Bond

White Colour Bond

White Colour Bond

EXTERNAL TOP

White Colour Bond

White Colour Bond

White Colour Bond

EXTERNAL BACK&BASE

Zinc

Zinc

Zinc

INTERNAL MATERIAL

White Colour Bond

White Colour Bond

White Colour Bond

COMPRESSOR                           (Hp)

1/2

1/2

1/2

REFRIGERANT

R22

R22

R22

EVAPORATOR FAN MOTOR     (Watt)

1 x 9 Watt

2 x 9 Watt

2 x 9 Watt

CONDENSER FAN MOTOR       (Watt)

1 x 10 Watt

1 x 10 Watt

1 x 10 Watt

VOLTAGE SUPPLY

220-240 V / 50Hz

220-240 V / 50Hz

220-240 V / 50Hz

CONTROL PANEL

Digital Control

Digital Control

Digital Control

DEFROST SYSTEM

Force Air Circulation

Force Air Circulation

Force Air Circulation

COOLING PERFORMANCE  (Celsius)

Chiller Top  +2C° ~ +6C°

Chiller Top  +2C° ~ +6C°

Chiller Top  +2C° ~ +6C°

Freezer Bottom -5C° ~ -8C°

Freezer Bottom -5C° ~ -8C°

Freezer Bottom -5C° ~ -8C°

DRAINAGE

Drain Pan

Drain Pan

Drain Pan

GROSS VOLUME                   (CU.FT)

Top 18  /  Bottom 6

Top 33  /  Bottom 6

Top 27  /  Bottom 9

NET WEIGHT                              (kgs)

178

265

265

NO. OF DOORS

4  Double Glass Door

5 Double Glass Door

6 Double Glass Door

NO. OF SHELVES (PVC)

6

10

9

FEET (Bullet Feet)

Wheel

Wheel

Wheel
